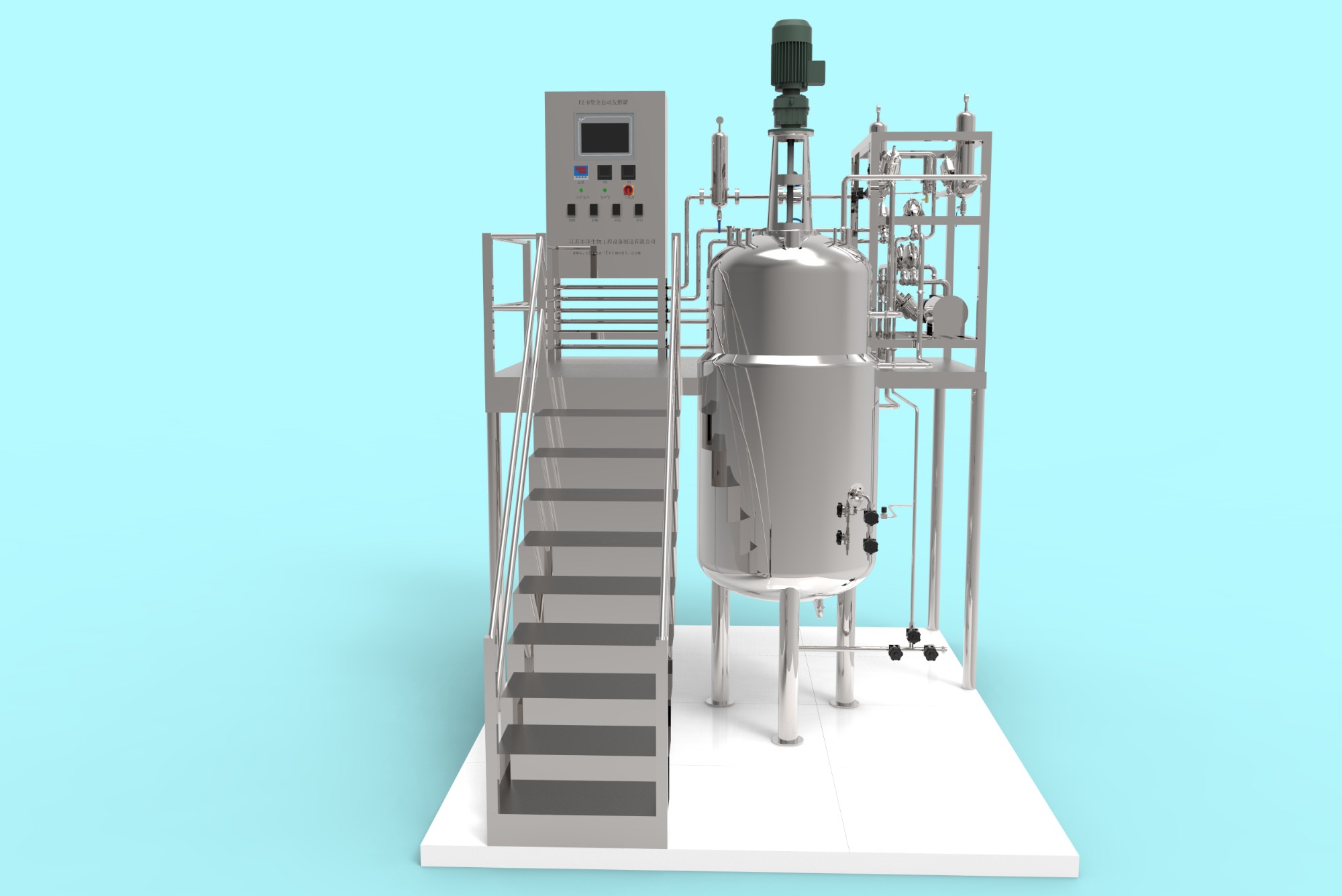

2000L BIOREACTOR / MILK FERMENTER

1.

Tank

Volume:2000L, Loading coefficient:70-75%

Press design:0.30Mpa,

Size:DN1000×8×2500

Heat exchange way: jacket heating or heat exchange

Inside material: SUS316   Jacket material: SUS304

Adopt the Optimization diversion design, Inside and outside polishing precision Ra≤0.4μm

Tank equiped: Big window side mirror, pH electrode,DO electrode, temperature electrode connect, Flame inoculation mouth, Liquid level foam electrode, Three way feeding mouse,24V Shoot light type light mirror

Sterilization ways: automatic sterilization, control valve: Germany cover meters

2.

Mixing

Top type mechanical mixing system:

Aseptic sealing system

Motor power:5.5kw

Motor reducer: SEW made in Germany

Mixing layer: 3layers

Mixing structure: Convenient disassembly adjustable speed mixer shaft and mechanical seal assembly

3.

Air inlet system

Air inlet way: Tank bottom, Disc type air distribution device

Flow control: Glass rotor flowmeter display, manual valve control flow

Pre-Filter:Equiped 0.3UM pre filter system,and equip 0.01um Aseptic filtration system

Air supplying way: Equipped with excellent constant pressure air supply system

Flow:2m3/min

Precision filter: filter accuracy 0.01um, filtering capability: 99.9999%

Flow rate: 0.3 m3 / min, the size of the interface: DN25

Steam filter: filter accuracy 0.01 um, interface: Φ 12

4.

constant temperature control

Four digital display temperature transmitter, PT100 temperature electrodes
Measuring accuracy: 0.3 on the Richter scale (0.3% FS plus or minus 0.1 ℃), the measurement range of 0-150 ℃
Control mode: jacket water bath heating, cooling,  PID automatic control
Actuator: constant temperature control of circulating water heating, cooling water (water) at low temperature control cooling.
Control content: two-way control heating cooling.Manual/automatic control.Data storage, data remote transmission.

5.

Rotate speed

Can adjust

6.

Automatic sterilization system

Digital setting tank sterilization temperature and sterilization time, automatically control the sterilization temperature and cooling process.

7.

Press control

Digital setting tank pressure, 4-20 ma signal linear automatic adjustment tank pressure.

8.

Automatic Flow control

Glass rotameter display

9.

Ph

The world brand Swiss company gel PH glass electrode
Reigned electrode can be high temperature sterilization, the sterilization temperature: 130 ℃,
Measuring range: 0-14 PH, precision: PH 0.01 mm;
Four digital transmitter, power supply AC 220 v, 4-20MA
Equipped with original Swiss import shielded wire

10.

DO

The world brand Swiss company DO membrane electrode,
Reigned electrode can be high temperature sterilization, the sterilization temperature: 130 ℃,
Form a complete set of stainless steel DO electrode sheath;

Measuring range 0-100%, plus or minus 1% accuracy;

Form a complete set of four digital transmitter, power supply AC 220 v, 4-20 ma

Equipped with original Swiss import shielded wire electrode
