ZG-30㎡ FREEZE DRYER

Product Item : ZG-30㎡
Category： Freeze Dryer
Input capacity:300Kg
Power supply:380V/50Hz/3P
Machine size（L*W*H）:1930*1200*15*2mm
Product description： FREEZE DRYER
INQUIRY

ZG-30㎡ FREEZE DRYER

1.Dry at low temperature, the loss of some volatile components is very small. So it is fit for some chemical products, pharmaceuticals and food drying.
2. During the freeze-drying process, the growth of microorganisms and enzymes function does not proceed, so they can maintain the original character.
3.Freeze-drying within the frozen state, the volume is almost unchanged and maintain the original structure, and no enrichment phenomenon.
4.After drying, the material will be loose and porous, like sponge. After adding water the material dissolves rapidly and completely and
regain the original character almost immediately.
5.As drying under vacuum, there is little oxygen, so a number of easily oxidized components have been protected.
6.Drying can eliminate more than 95- 99% of moisture, so that the dried product can be stored for a long time without deterioration. Therefore, the freeze-drying is widely used in pharmaceutical industry, food industry, researches and other ways

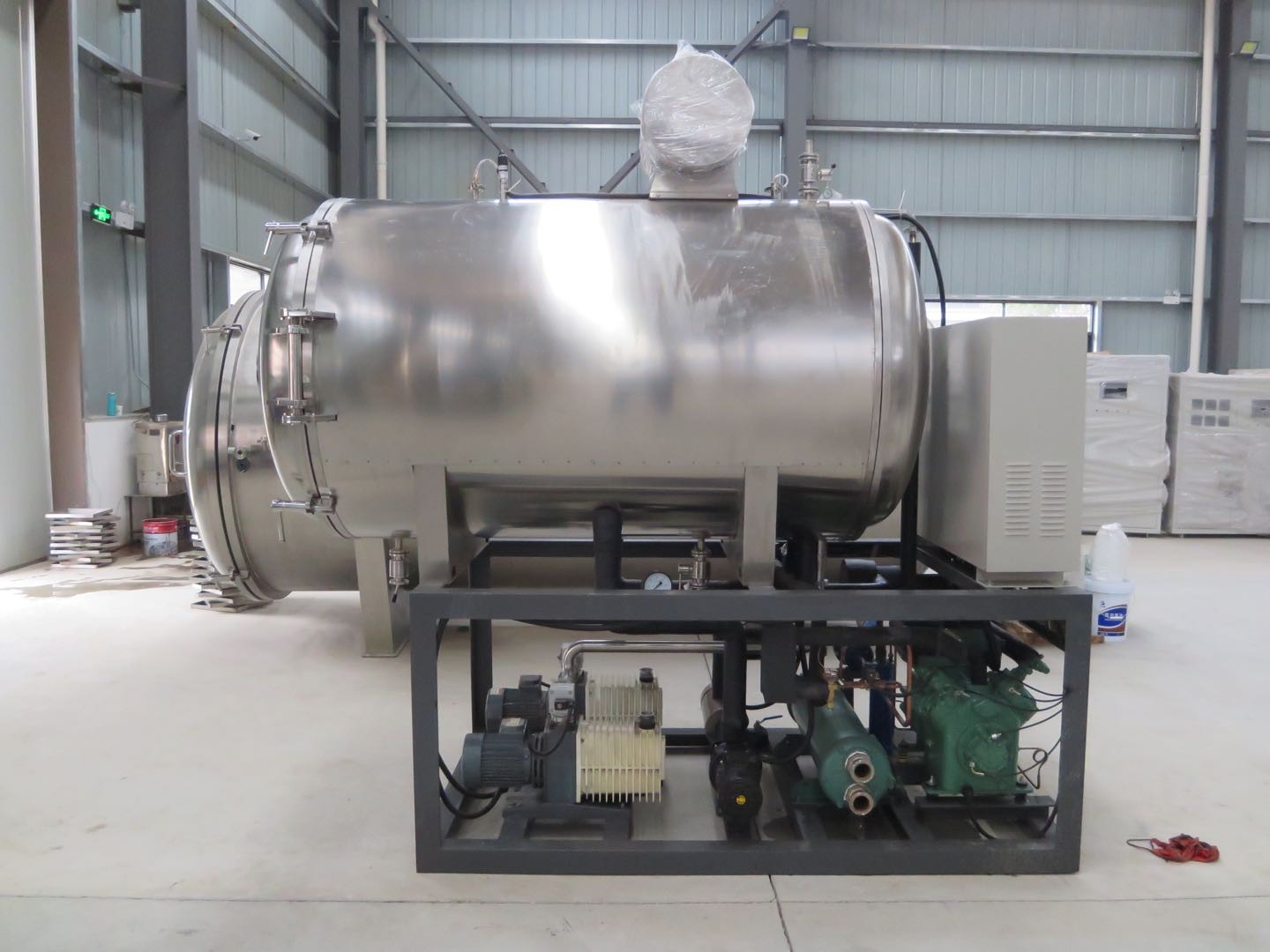

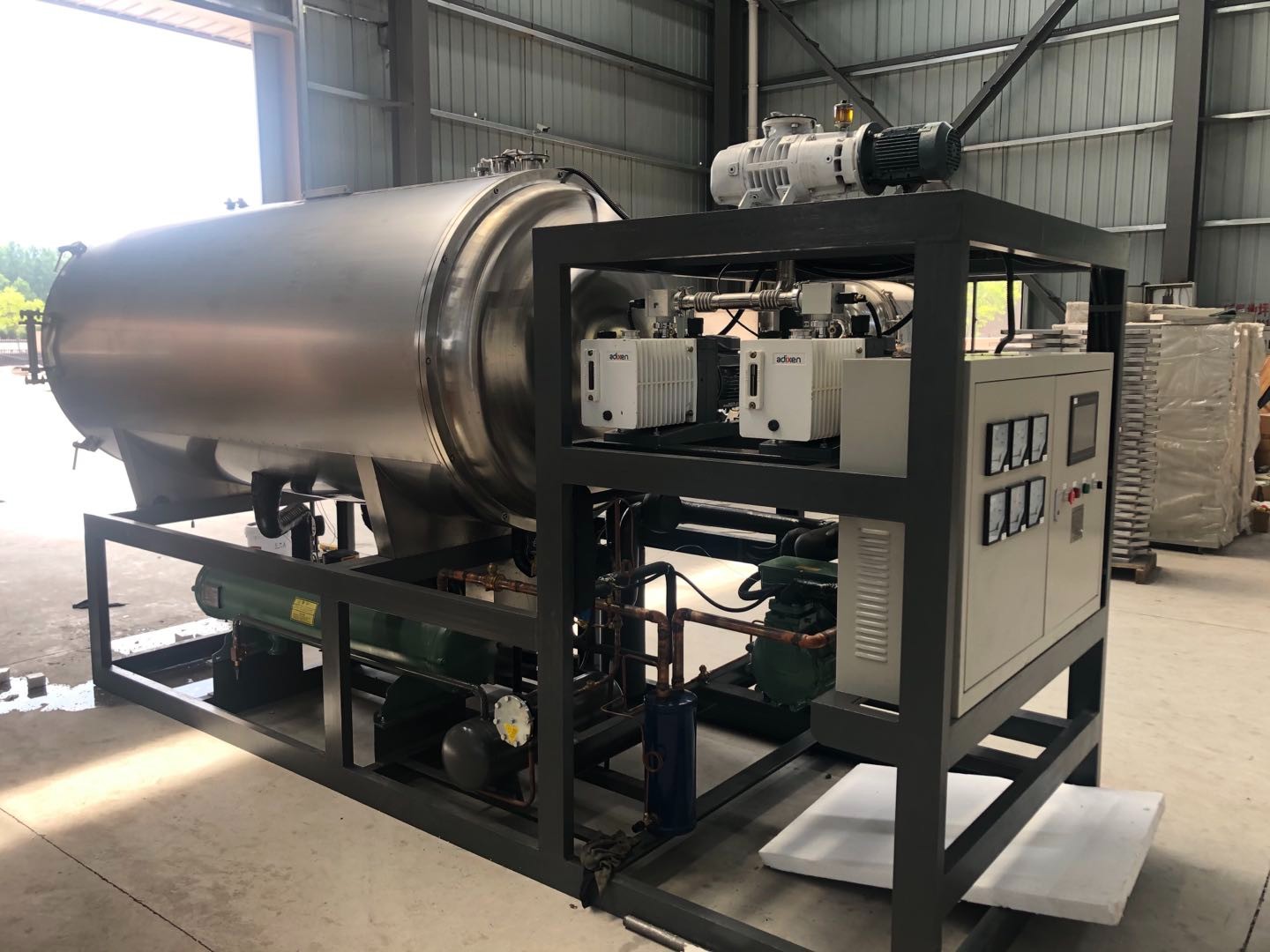

ZG-30㎡ Freeze Dryer
Construction	Technical Parameters	Remark
Base Structure
Effective area of shelves	30㎡
Input capacity	300kg/batch
Maximum Condenser capacity	600Kg/batch
Power supply	380v50hz 3P	According to client’s Voltage
Power consumption	84.7Kw
Cooling Water	30T/Hr (T＜28℃, P=0.1-0.15MPa	Recyclable Provided by customer
Main Structure	Separated type	subject to the actual design
Weight	9500 Kg
Dry Chamber
Dry Chamber Material	SUS304/ 6mm thick
Door lock	Hand knob lock
Door Open direction	Right to left	Decided by customer
Open angle	＞110°
Door material	SUS304
Dry Chamber Shape and dimension	Cylinder φ1700*2200
Observation window	Frost-resistant glass φ240、δ25~27	Installed on the front
Door seal	Medical o section silicone rubber seal
Temperature sensor	T-type thermocouple
CIP(clean in place)	SUS304 wide angle sprayer
CIP inlet valve	Ningbo
CIP outlet valve	Ningbo
pipe	SUS304

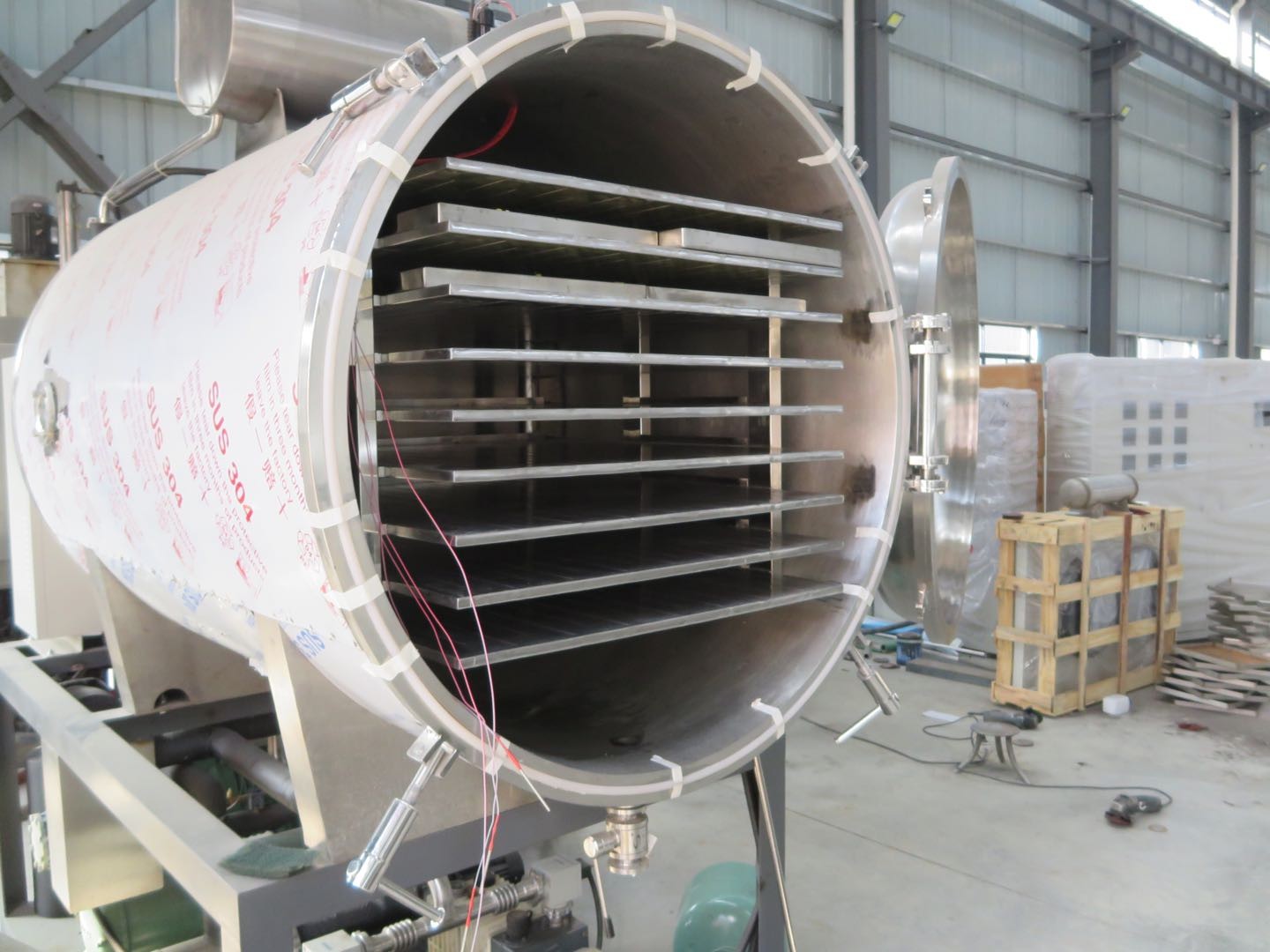

Shelves
Shelf material	SUS304
Shelf quantity	13+1 layers	The top layer of the shelves is temperature compensation
Stainless Steel tray	ANHUI KEYO 48029530*2mm	total 208pcs
Distance between shelves	75mm
Shelf dimension（LWH）	1930120015*2mm
Shelf lowest temperature	Room temperature
Shelf working temperature	-50~70℃
Heating power consumption	28Kw/380V/50Hz
