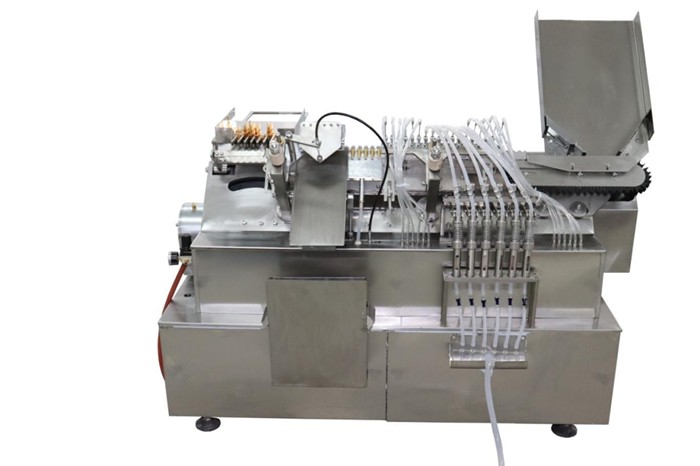

6 heads Ampule filling machine

Technical parameters

1. Ampoule specifications: 1-2ml

2. Output: 60-80 branches/min (6 needles filling, 6 heads sealing)

3. Sealed Gas: Gas + Oxygen

4. Gas pressure: P gas = 0.9-1 Kpa P oxygen = 0.08-0.1 Mpa

5. Blowing pressure: using oil-free compressed air, its pressure (> 0.4-0.5 Mpa)

6. Motor: Power: 0.55KW

Speed: 1400 rpm/dV: 380V 50Hz

7. Size of the whole machine: L X W X H: 1600 X 800 X 1500 mm

8. Machine weight: 450KG

Reference pattern
