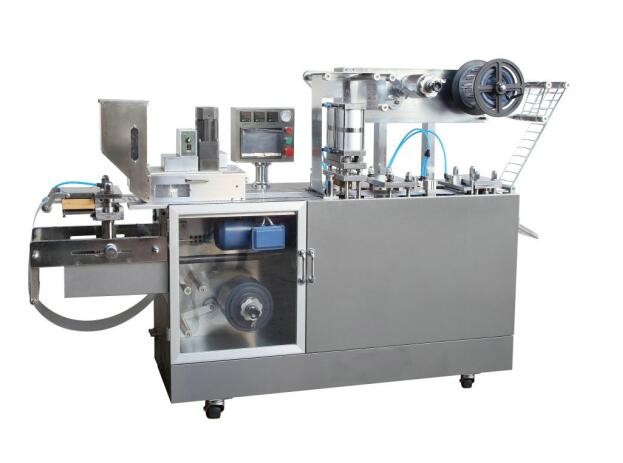

DPP-140 Blister Packing Machine

Product Item : DPP-140
Category： Blister packing machine
Production Capacity：3600 pcs/hour
Standard Plate (mm)：80*57mm（Can be manufactured as user's requirements）
Air Pressure (Mpa)：0.6-0.8
Product description：DPP-140， Blister Packing Machine
INQUIRY

Features:

Adopt the high-power transmission of the domestic latest model,and spread to move the stalk from the row chain to remove other gear transmission error and noise.

Model	DPP-140
Cutting Frequency	5-30 (Times/min)
Production Capacity	3600 pcs/hour
Max. Forming Area And Depth (mm)	14010026（mm）
Travel Range (mm)	20-120 (Standard Depth 14mm)
Standard Plate (mm)	80*57mm（Can be manufactured as user's requirements）
Air Pressure (Mpa)	0.6-0.8
Air Supply	≥0.2m3/min
Total Power	380V/220V 50Hz 3.2Kw
Main Motor Power (KW)	0.75Kw
PVC Hard Pieces (mm)	0.15-0.5*140 (mm)
PTP Aluminum Foil (mm)	0.02-0.035*140 (mm)
Dialysis Paper (mm)	50-100g*140（mm）
Mould Cooling	Tap Water Or Circulating Water
Overall Dimensions (mm)	2300×560×1410(L×W×H)
Weight (kg)	800（Kg）
noise target	<75dBA
