Purpose:

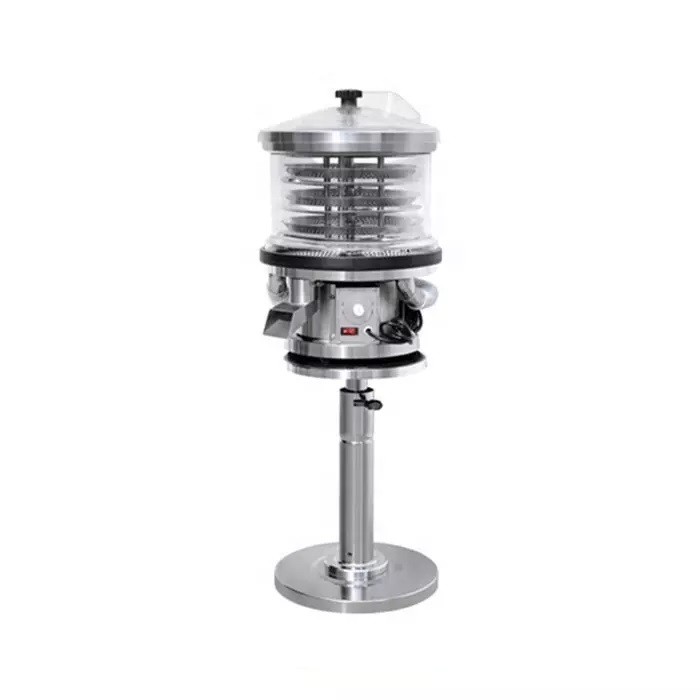

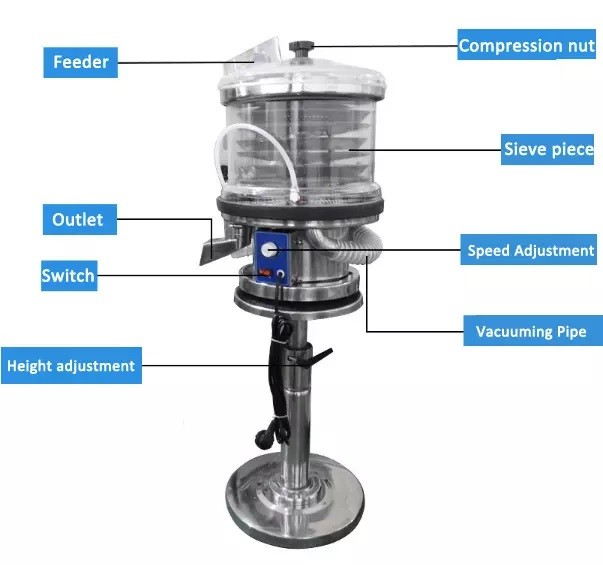

The KY300 is suitable for dust removing of various shapes of tablets. The whole production process is direct and visual. Medicine and dust isolating devices are additionally mounted among all layers of sieve plates to realize effective separation of tablets and dust. The parts in the machine that contact with tablets are all made of SUS316L/SUS304 stainless steel. It can work with any model of tablet press.
Feature:
1. The design meets GMP requirements.
2. The multi-layer sieving structure realizes effective separation of tablets and dust.
3. The whole production process is direct and visual.
4. The vibration amplitude and production speed are continuously adjustable.
5. Simple disassembly and installation operation, convenient use and cleaning
6. Reliable performance, high efficiency and low noise
Technical Parameters
Model
Max.production efficiency
Max.tablet diameter
Power supply
Overall dimensions
Machine weight
Compressed air
Vacuum cleaning
T/h
mm
mm
kg
KY300
55000(Φ6mm)
Φ25
1P 220/110v 50-60HZ
Φ350*(H:770-950)
38
0.1m³/min 0.05Mpa
2.7m³/min 0.01Mpa
