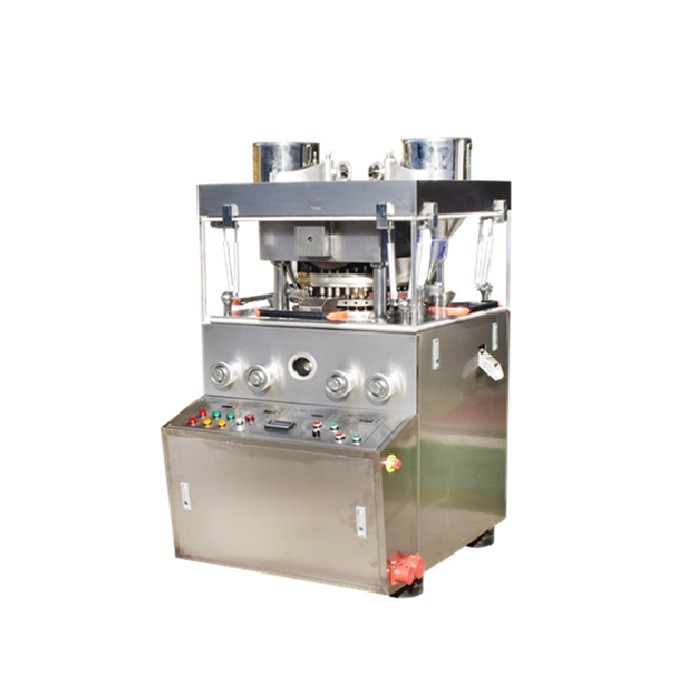

KY420D Full-automatic Tablet Press Machine(press-button control)

Product Item : KY420D Full-automatic Tablet Press Machine
Category： Tablet Pressing Machine
Production Capacity: 70000 tablets/h
Rotating speed (rmp):0-30
Maximum filling depth:15mm
Dimension(L*W*H):1240*850*1850 mm
Product description： Full-automatic Tablet Press Machine
INQUIRY

Performance

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.

1. Technical Parameters of KY420D Full-automatic Tablet Press

Model Parameter	KY420-31D
Punch pin number	31
Punch diameter	26mm
Die diameter	34mm
Production range (10,000 tablets/h)	111600
Rotating speed (rmp)	0-30
Maximum pressure	100KN
Maximum filling depth	15mm
Tablet thickness	0.5～6mm
Maximum tablet diameter	Ф20mm
Maximum abnormal axis size	＜25mm
Punch length	115mm
Working noise	≤70dB
Total power	5.5KW/380V，50Hz,three-phase five-wire system
Bounday dimension of equipment	12408501850 mm
Net weight of equipment	1750kg
Remark	The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type.

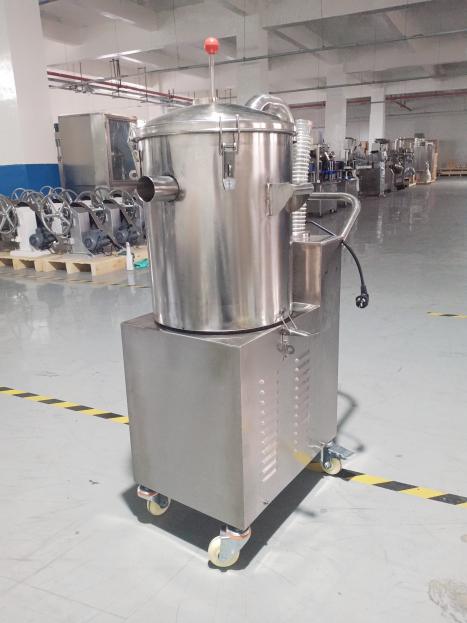

Dust Collector XCJ-1.1

Performance

It’s widely applicable to clean dust on the equipment and in the enviroment of industrial production, such as medicine, foods, chemical industries etc. It’s main material adopted the stainless steel.

Machine Photo
