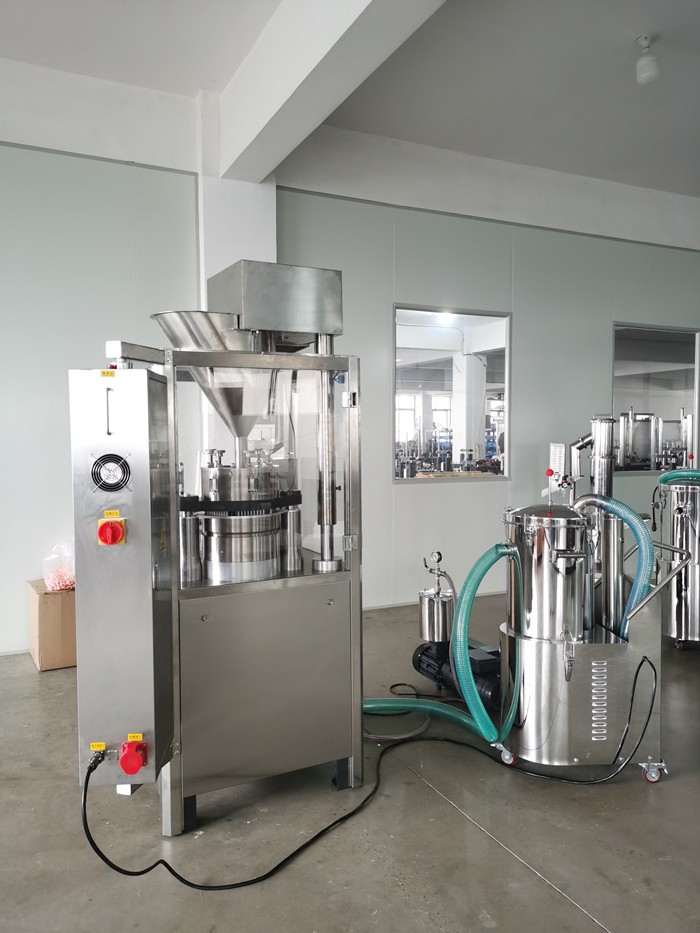

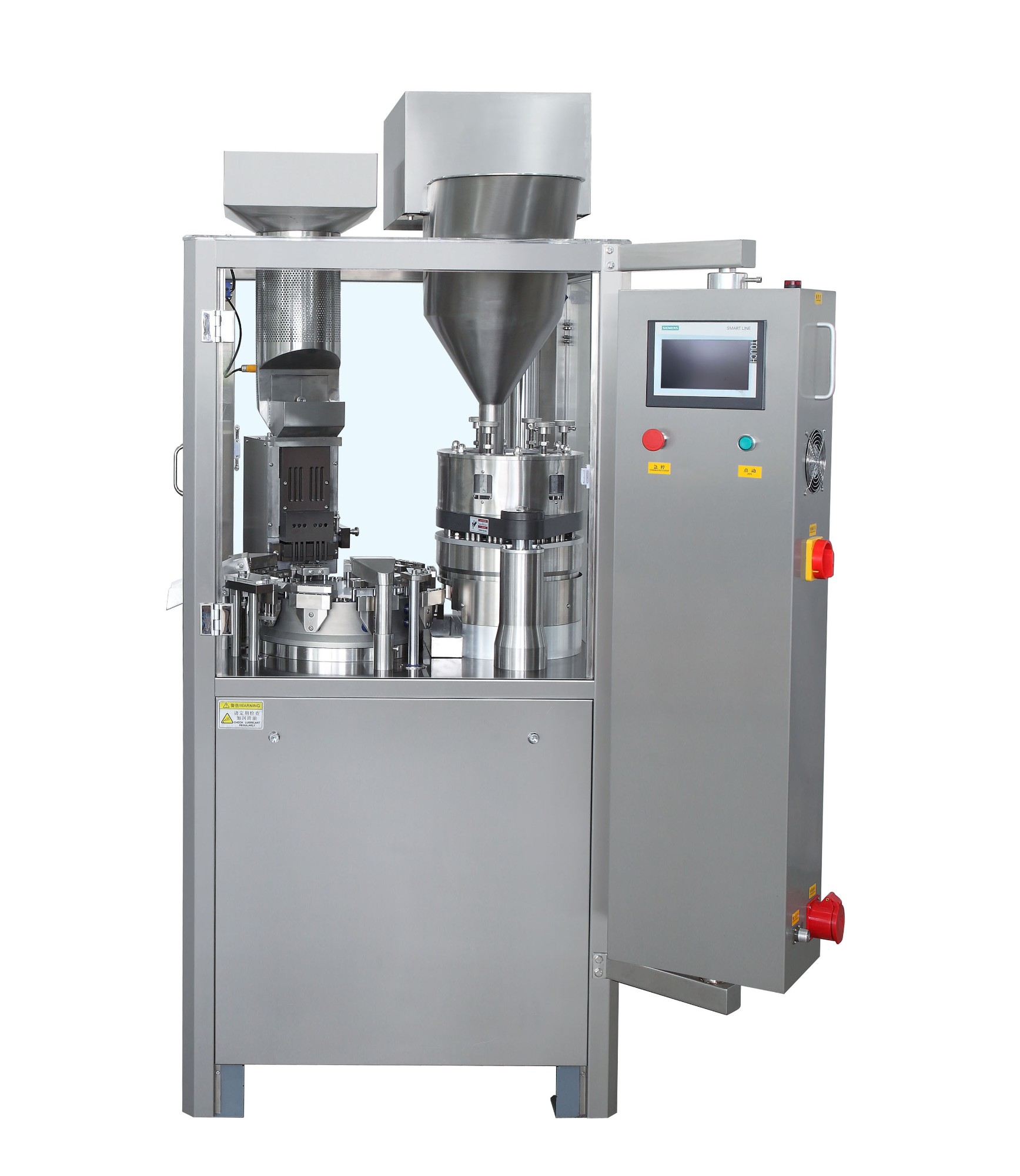

NJP-800 Model Fully Automatic Capsule Filling Machine
- Product Item : NJP-800
- Category： Capsule filling machine
- Production Capacity: 800 capsules/min
- Suitable for Capsule：00#, 0#, 1#, 2#, 3#, 4#
- power:380V 50Hz 3P
- Dimension(L*W*H): 1420mm. (L) x 1220mm(W) x 1940mm(H)
- Product description：Fully Automatic Capsule Filling Machine
Main Technical Parameter
|
Model No. |
NJP-800 |
|
Capacity |
800 capsules/min |
|
Filling type |
Powder, Pallet |
|
No. of Dose/holes of each mold |
6 |
|
Suitable for Capsule |
00#, 0#, 1#, 2#, 3#, 4# |
|
Filling error |
±3%-±4% |
|
Noise |
≤75dB（A） |
|
Voltage |
380V 50Hz 3P |
|
Total Power |
5.57Kw |
|
Overall Weight |
900Kg |
|
Gross Weight |
985Kg |
|
Machine Dimension |
1020mm. (L) x 860mm(W) x 1970mm(H) |
|
Packing Dimension |
1420mm. (L) x 1220mm(W) x 1940mm(H) |
Main Electrical Component List:
|
NAME |
SPECIFICATION TYPE |
QTY. |
MANUFACTURER |
|
TOUCH SCREEN |
TK60711Q |
1 |
TAIWAN WEILUN |
|
PLC |
14ES |
1 |
TAIWAN TAIDA |
|
SWITCH POWER |
S-35-24 |
1 |
TAIWAN MINGWEI |
|
AC CONTACTOR |
NXC-12 |
3 |
CHINA CHNT |
|
AC CONTACTOR |
NXC-25 |
3 |
CHINA CHNT |
|
AIR SWITCH |
3P25A,1P6A |
2 |
CHINA CHNT |
|
THERMAL RELAY |
NXR-25 4-6A |
2 |
CHINA CHNT |
|
THERMAL RELAY |
NXR-25 2.5-4A |
1 |
CHINA CHNT |
|
INVERTER |
1.5KW |
1 |
CHINA SANJING |
|
MAIN MOTOR |
PL30 |
1 |
TAIWAN DONGLI |
|
BEARING |
EASE IKO |
122 |
JANPAN |
|
VACCUM PUMP |
SK SERIES 1.5kw |
1 |
SHANGHAI |
|
DUST COLLECTOR |
XCJ SERIES 1.1kw |
1 |
OUR FACTORY |
|
HIGH PRECISION CAM GRADUATOR |
83-6,83-10 |
2 |
CHINA SHANDONG |
|
PD-M25NB |
1 |
CHINA DONGTOU |
